Perforated Metal Mesh Specifications & Customization Range
Source:www.cn-psp.cnAuthor:河北森驰公司 Last updated:2025-05-12 09:51:03 Browse:
Common Materials
Stock perforated metal mesh is typically available in cold-rolled steel, hot-rolled steel, galvanized steel, manganese steel, stainless steel, aluminum, and copper. Each material offers its own strengths in load capacity, corrosion resistance, and aesthetic finish, allowing you to choose the right perforated metal mesh for your environment and budget.
Sheet Thickness
Thicknesses generally range from 0.3 mm to 3 mm, with popular options at 0.5 mm, 1.0 mm, 1.5 mm, and 2.0 mm. This covers needs from light decorative screening to moderate load-bearing applications.
Panel Sizes
Standard flat panels include:
1.0 m × 2.0 m
1.25 m × 2.5 m
For coils:
1.0 m × 20 m
1.2 m × 20 m
Other sizes may be available depending on stock levels, simplifying on-site installation and joining.

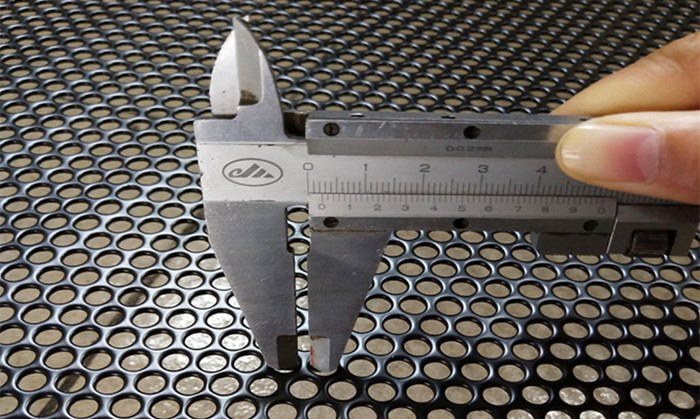

Hole Diameters & Patterns
Stock meshes usually feature round holes with diameters of 1 mm, 2 mm, 3 mm, 4 mm, 5 mm, 6 mm, 7 mm, 8 mm, 9 mm, 10 mm, 15 mm, and 20 mm. You can choose single-row, double-row, or staggered layouts to balance airflow, light transmission, and visual appeal.
perforated metal mesh
II. Custom Perforated Metal Mesh Specifications
Flexible Material Selection
Beyond standard stock options, customized perforated metal mesh can be produced in any of the above materials—with special alloy grades or surface treatments (e.g., high-temperature resistance, advanced corrosion protection, or plating) to meet unique project demands.
Expanded Thickness Range
Custom thicknesses span from ultra-thin 0.1 mm sheets up to 20 mm plates, covering applications from precision filtration to heavy-duty structural support.
Maximum Width & Length
Widths up to 1.5 m are generally feasible, while lengths are cut to customer requirements. We offer full sheets, long coils, or segmented panels for ease of transport and rapid on-site assembly.
Hole Sizes & Decorative Patterns
Hole diameters can be customized from 0.2 mm to 300 mm, and hole shapes include round, square, slot, diamond, flower-shaped, and more. Layouts range from uniform rows to complex artistic patterns, ideal for architectural facades, acoustic panels, filtration screens, and industrial guards.
perforated metal mesh
III. How to Select & Order
Define Application
Determine whether your perforated metal mesh is intended for façade decoration, partition screens, machinery protection, or filtration—factors that influence material, hole size, and thickness.
Refer to Stock Standards
If standard dimensions and performance meet your needs, opting for stock mesh reduces lead times and lowers costs.
Consult for Customization
For special requirements, please provide material grade, thickness, panel size, hole diameter, hole pattern, and estimated quantity. Our engineering team will propose the optimal punching layout and send you a detailed quotation.
Fast Delivery & Quality Assurance
With dedicated perforating lines and rigorous QC procedures, we guarantee precision and reliability. All products come with factory inspection reports and support third-party testing.
