High-Quality Perforated Metal Mesh: Specifications, Materials & Applications
Source:www.cn-psp.cnAuthor:河北森驰公司 Last updated:2025-05-11 09:16:17 Browse:
Perforated metal mesh combines industrial strength with decorative appeal. By punching precise holes across a metal plate, it delivers excellent airflow, light diffusion, protection, and aesthetic value. Our in-stock mesh mainly features round holes ranging from 1 mm to 20 mm in diameter, accommodating everything from fine filtration tasks to eye-catching design accents.
Hole Types & Layouts
We predominantly offer round-hole patterns, prized for their simple structure and efficient production. You can choose from three main layout styles to match functional or visual requirements:
60° Equilateral Triangle Layout
Holes form a perfect equilateral triangle grid, maximizing open area for superior ventilation and light transmission.
45° Diagonal Layout
Holes are staggered at 45°, creating a dynamic visual rhythm while maintaining robust structural integrity.
90° Straight-Line Layout
Holes align in neat rows and columns, simplifying cutting, splicing, and installation processes.
Each layout can be selected to optimize airflow, filtration, safety, or decorative impact.
Material Options
To suit diverse environments, we supply three primary metal types:
Galvanized Steel
Cost-effective with strong rust-resistance, ideal for general outdoor use.
201 Stainless Steel
Good corrosion resistance for mildly acidic, alkaline, or humid settings.
304 Stainless Steel
Exceptional corrosion and heat resistance, perfect for food processing, chemical equipment, and other demanding conditions.
Clients should choose material based on exposure, budget, and performance needs.

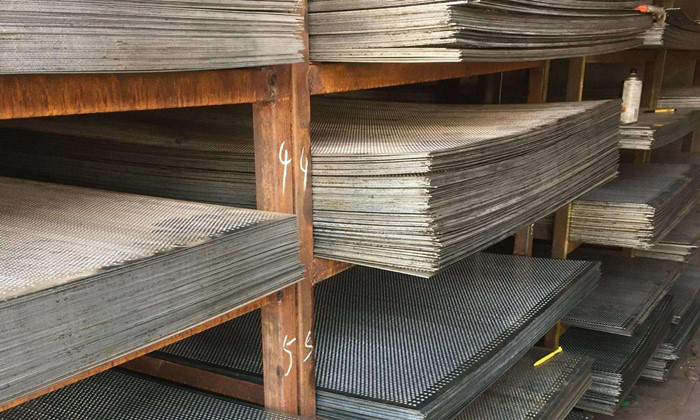

punching net
Specification Range
Our ready-stock perforated mesh covers multiple hole sizes and plate thicknesses, available as flat sheets or coils. Typical offerings include:
Small Holes (1–2 mm) with plate thicknesses from 0.5 mm to 1.0 mm—ideal for fine filtration and decorative panels.
Medium Holes (3–4 mm) with thickness up to 5 mm—suited for industrial ventilation and protective covers.
Large Holes (9–10 mm) with thickness between 0.8 mm and 3.0 mm—common in curtain walls, partitions, and stair treads.
Standard flat-sheet sizes are 1 m × 2 m and 1.25 m × 2.5 m; coil widths of 1 m and 1.2 m can reach up to 20 m in length.
Main Applications
Industrial: Ventilation filters, sound barriers, machine guards.
Architectural: Curtain walls, ceiling panels, interior partitions, stair treads.
Municipal: Drain grates, safety barriers, stormwater covers.
Residential: Balcony railings, plant stands, decorative screens.
Versatile hole patterns, layouts, and materials make our perforated mesh a go-to solution across sectors.
Purchase & Customization Advice
Define Function: Determine if you need airflow, filtration, protection, or decoration to select the optimal hole size and layout.
Select Material: For humid or corrosive environments, choose 304 stainless steel; for general outdoor use, galvanized steel is cost-effective.
Determine Size: Decide between flat sheets or coils based on installation dimensions, allowing for cutting and splicing.
Custom Requirements: Contact us with drawings or samples for special hole shapes, spacing, or plate dimensions.
Feel free to call or email us for personalized recommendations, quotes, and free samples to ensure your project runs smoothly.
