Perforated Sheet Specifications, Materials, and Custom Sizes

Source:www.cn-psp.cnAuthor:河北森驰公司 Last updated:2025-05-19 14:30:10 Browse:

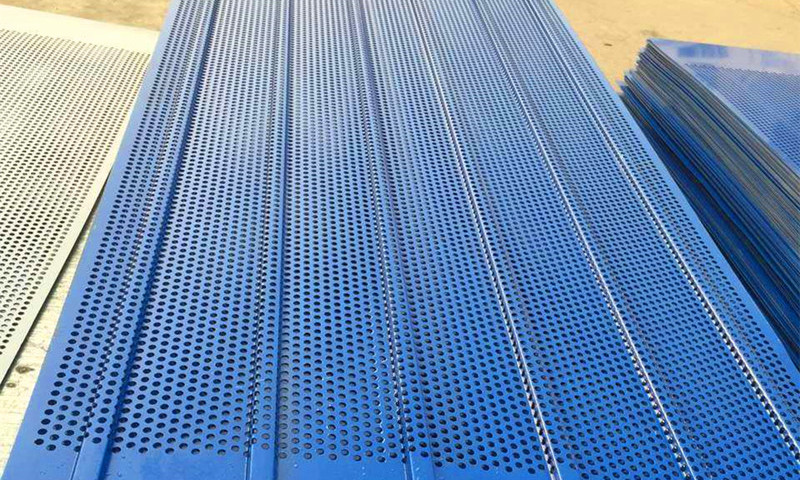

Perforated sheet is a type of metal sheet product created by punching uniformly distributed holes into metal plates using CNC punching technology. After further processing such as cutting and flattening, it becomes a mesh panel with both decorative and functional properties. Perforated sheets are widely used in architectural facades, decorative partitions, lightbox panels, filtration components, stair treads, and more. Depending on the application and load requirements, various hole types, diameters, open areas, and sheet specifications can be customized to meet diverse project needs.

Raw Materials & Thickness
Material Types

Carbon Steel: Cold rolled, hot rolled, galvanized, manganese steel; commonly used grades include Q235B, Q345B.

Aluminum Alloy: Common grades include 1050, 1060, 1100 (1xxx series), 3003, 3004 (3xxx), 5005, 5052, 5083 (5xxx series).

Stainless Steel: Grades such as 201, 304, 316/316L, 430, and 2205 offer excellent corrosion resistance.

Sheet Thickness

Customizable range: 0.2 mm to 20 mm

Standard stock:

Cold rolled steel: 0.3 mm to 2.5 mm

Hot rolled steel: 1.8 mm to 20 mm

Selecting the right material and thickness ensures both the aesthetics and structural performance of the perforated sheet.

Perforated sheet
Perforated sheet

Standard Sizes & Custom Range
Standard Sizes

Flat sheets: 1.0 m×2.0 m, 1.22 m×2.44 m, 1.25 m×2.5 m, 1.5 m×3.0 m

Coil sheets: 1.0 m×20 m/roll, 1.25 m×20 m/roll

Custom Capabilities

Flat sheets up to 1.5 m×4.0 m

Coil sheets up to 1.5 m×300 m

Larger or non-standard sizes are available upon request

A wide range of dimensions gives greater flexibility for on-site installation and reduces the need for secondary processing.

Perforated sheet
Perforated sheet

Hole Types, Diameters & Open Area
Common Hole Patterns

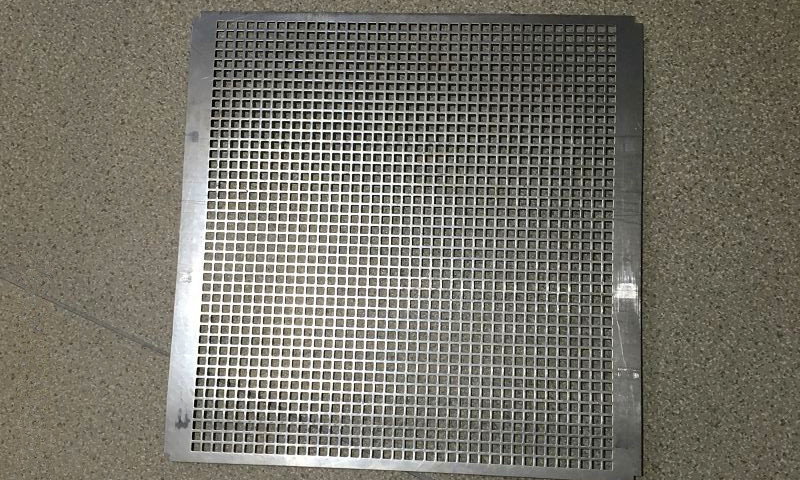

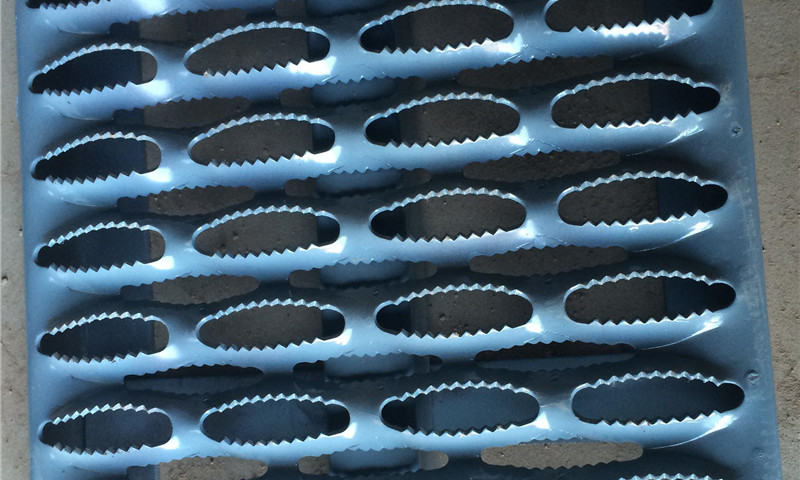

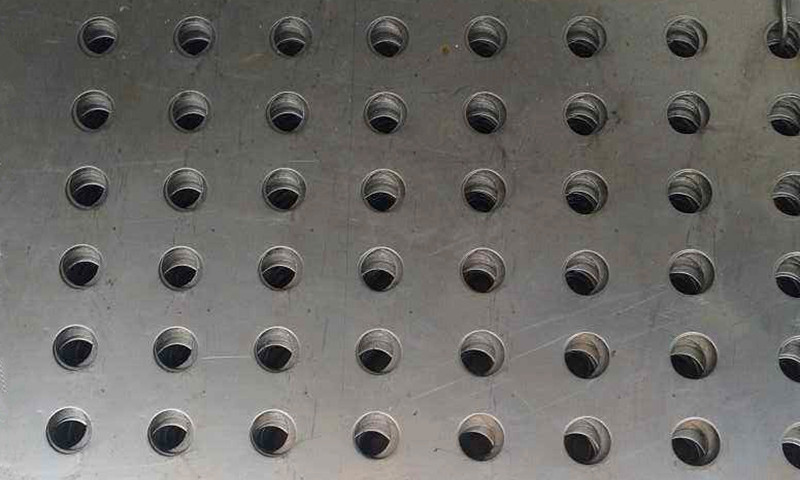

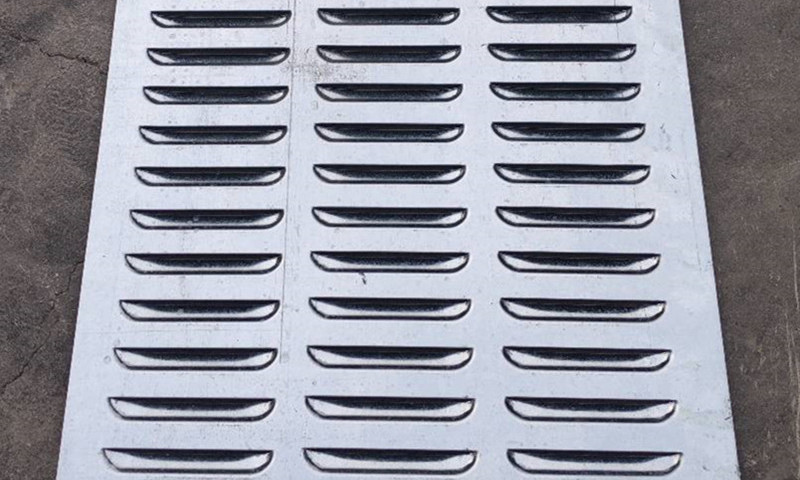

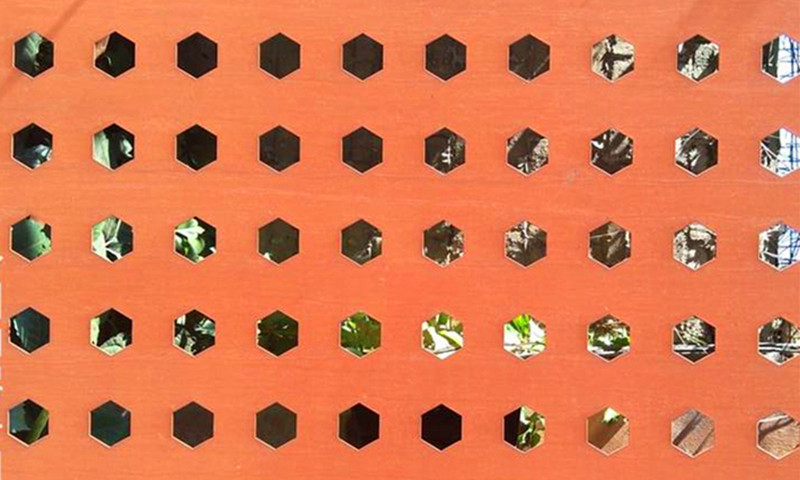

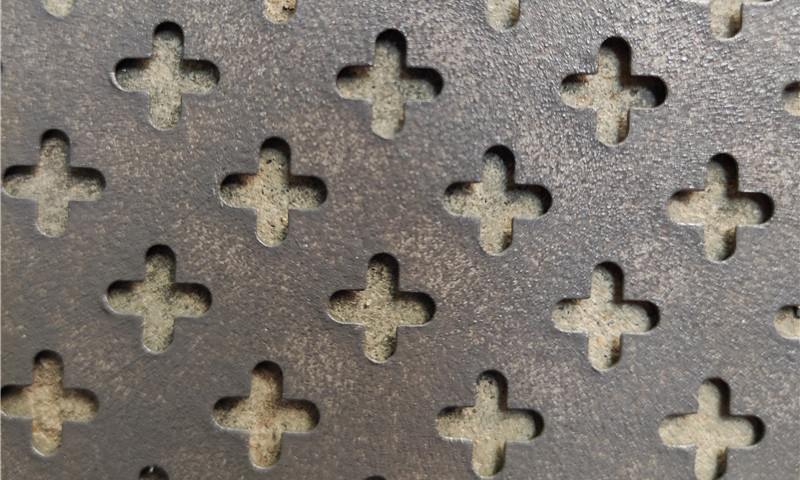

Round holes, oblong holes, square holes, triangle holes, star-shaped holes, hexagonal holes, figure-8 holes, cross holes, plum blossom holes, diamond holes, fish scale holes, louver holes, raised holes, crocodile mouth holes, and more.

Hole Size & Spacing

Hole diameter can be customized from a few millimeters to several tens of millimeters

Hole pitch (center-to-center distance) is adjustable to achieve different open area ratios, such as 30%, 40%, or 60%

By controlling the shape and distribution of holes, the perforated sheet balances visual appeal with functional requirements such as ventilation, filtration, and decoration.

Perforated sheet
Perforated sheet

Contact Us
To request a quotation or technical consultation for perforated sheets, please provide details such as material, thickness, size, hole pattern, diameter, and open area via:

Email: 342096438@qq.com

Perforated sheet
Perforated sheet

With years of experience in perforated sheet manufacturing, advanced CNC punching equipment, and a complete quality control system, we are committed to providing high-quality custom solutions. Feel free to reach out to us for cooperation!

This content is original and compiled by Hebei Senchi Metal Products Co., Ltd. All rights reserved.
