Applications and Customization of Stainless Steel Perforated Sheet in Modern Industries

Source:www.cn-psp.cnAuthor:河北森驰公司 Last updated:2025-05-26 14:51:57 Browse:

Diverse Hole Designs
Stainless steel perforated sheet is a metal mesh product made from stainless steel plate through precision CNC punching machines. According to customer requirements, different mold types are used for continuous punching. This results in a smooth surface, uniform aperture, excellent ventilation and heat dissipation, attractive appearance, strong corrosion resistance, acid and alkali resistance, and superior filtration performance. It is widely used across various industries.

The stainless steel perforated sheet can be processed into a variety of hole patterns, including round holes, oval holes, oblong holes, square holes, rectangular holes, triangular holes, star-shaped holes, hexagonal holes, cross holes, plum blossom holes, chevron holes, I-shaped holes, diamond holes, ventilation holes, raised round holes, crocodile mouth holes, and more. Additionally, irregular and custom shapes can be manufactured as per customer requirements. Hole size, pitch, and arrangement can all be customized.

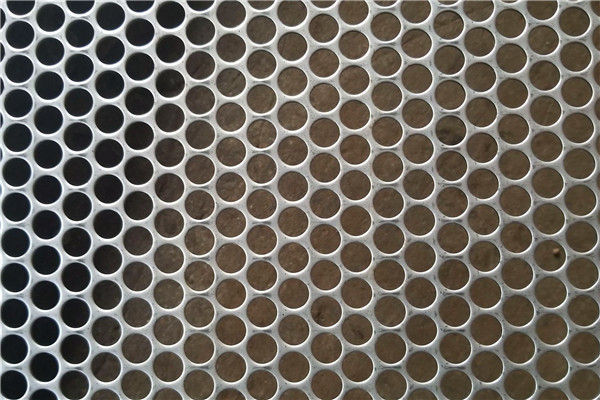

Stainless steel perforated sheet
Stainless steel perforated sheet

Relationship Between Hole Diameter and Sheet Thickness
The hole diameter of stainless steel perforated sheet can be customized from 0.2mm to 300mm. Some standard sizes are available in stock. However, there is a minimum hole diameter rule: the diameter must not be smaller than the thickness of the sheet. For example, a 3mm round hole can be punched into a sheet with a maximum thickness of 3mm. If the sheet is thicker than 3mm, punching a 3mm hole would not be feasible.

Hole Spacing and Layout Options
Hole spacing (pitch) can be customized according to customer needs. In theory, as long as the distance between adjacent holes is not smaller than the sheet thickness, the stainless steel perforated sheet can be manufactured accordingly. The larger the hole spacing, the easier the punching process. Hole layouts include 45° staggered, 60° staggered, and 90° straight row. Custom layouts can also be designed based on specific requirements.

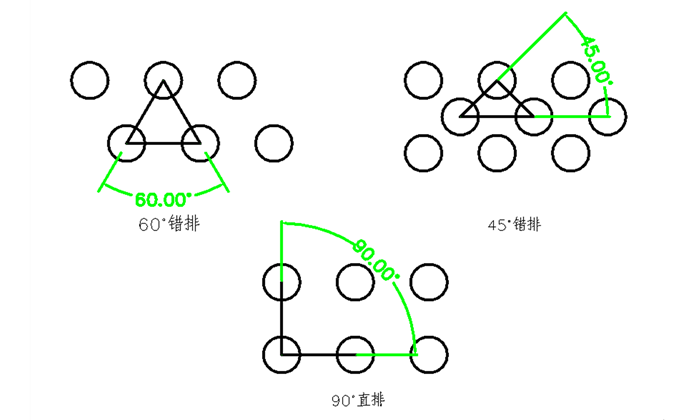

Conventional stainless steel perforated sheet mesh arrangement
Conventional stainless steel perforated sheet mesh arrangement
Wide Range of Applications
Stainless steel perforated sheet has a broad range of applications. In architectural decoration, it can be used for ceilings, interior and exterior wall finishes, staircases, balconies, and furniture surfaces. In machinery, it is often used for protective covers, filters, and ventilation grilles. In commercial spaces, it is ideal for display shelves and racks.

Furthermore, stainless steel perforated sheet is widely applied in various sectors including chemical machinery, pharmaceutical equipment, food and beverage machinery, tobacco machinery, harvesters, dry cleaning machines, ironing tables, noise reduction systems, refrigeration (central air conditioning), audio systems, crafts, papermaking, hydraulic accessories, and filtration systems.

For more detailed information on stainless steel perforated sheet, feel free to visit our official website: https://www.cn-psp.cn
