1. Standard Sizes – Ready Stock with Fast Delivery
Currently, stainless steel perforated sheets are mainly available in flat sheet and coil (roll) formats. These standard specifications are typically in stock and available for immediate delivery.

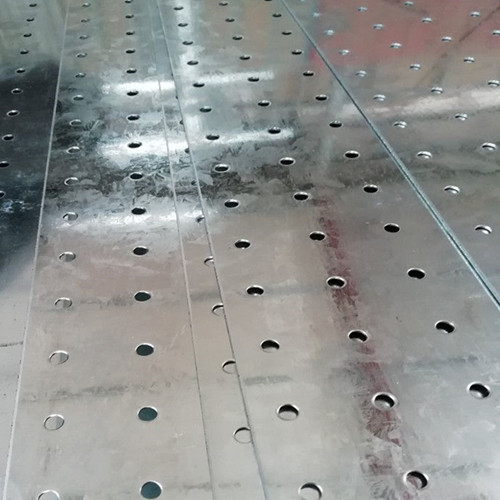

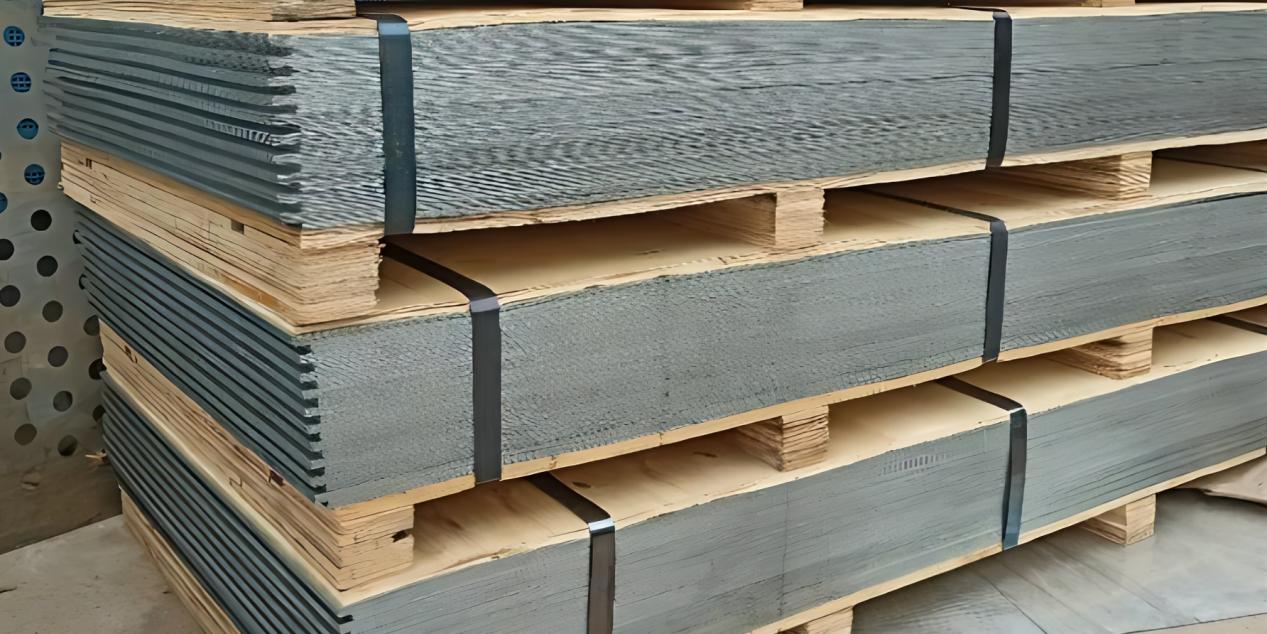

Flat Sheet Specifications (Most Common Sizes)
1000mm × 2000mm
1220mm × 2440mm
These are the most frequently used sizes, suitable for applications like building facades, machine guarding, partitions, and filtering equipment.
Standard round hole diameters include:
0.5mm, 0.6mm, 0.8mm, 1.0mm, 2.0mm, 3.0mm, 4.0mm, 5.0mm, 6.0mm, 8.0mm, 10.0mm
(Other hole diameters are available upon request.)

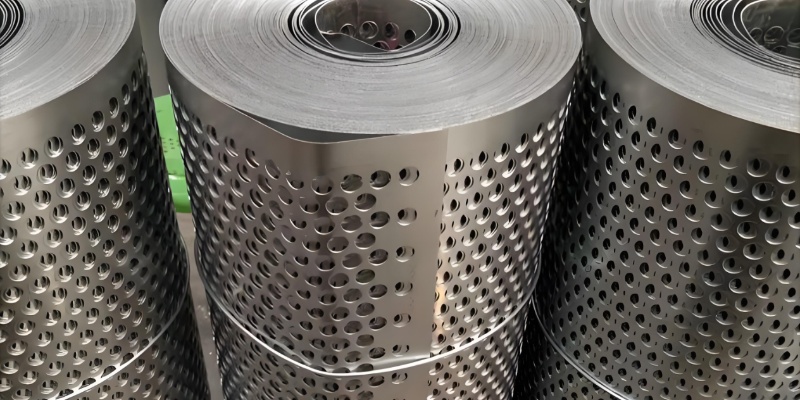

Coil (Roll) Specifications
1m × 20m
1.2m × 20m
Perforated rolls are ideal for large-area installations and continuous processing, especially in applications like ventilation panels, decorative walls, and industrial sieving.
Standard round hole diameters:
2.0mm, 3.0mm, 4.0mm, 5.0mm, 6.0mm, 8.0mm, 10.0mm
(Custom hole sizes available on request.)
2. Custom Sizes – Tailored to Your Specific Needs

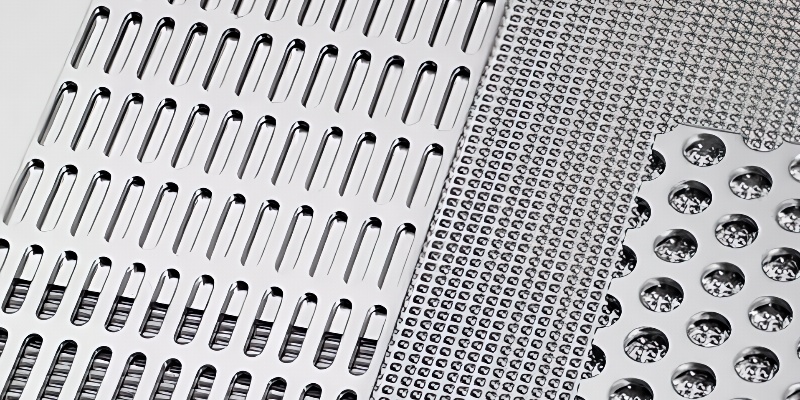

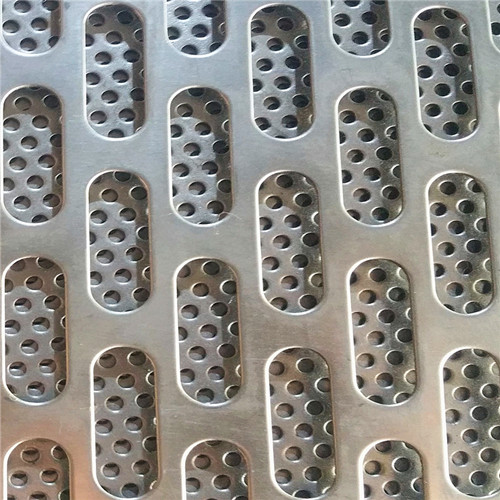

For projects that require non-standard dimensions, we offer flexible customization services, supporting both special sheet sizes and unique hole patterns.
Custom Flat Sheet Ranges:
Maximum width: up to 1500mm
Maximum length: up to 4000mm
Custom Coil Ranges:
Maximum width: up to 1250mm
Length: customizable without fixed limitation
This flexible production capability ensures that your stainless steel perforated sheet meets the exact specifications of your project.

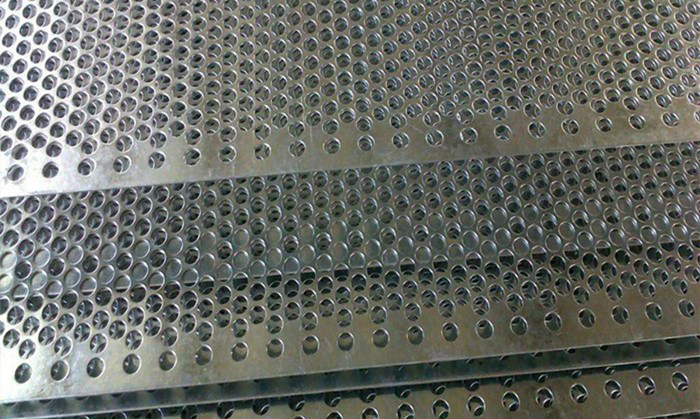

3. Hole Diameter and Pitch Range
Hole Diameter Range:
Our stainless steel perforated sheets support a wide range of hole diameters, from ultra-fine micro perforations to large openings:
Minimum hole diameter: 0.2mm
Maximum hole diameter: up to 300mm
Note: For structural integrity, the hole diameter should not be smaller than the thickness of the sheet.
Hole Pitch Guidelines:
To maintain mechanical strength and avoid material deformation, the minimum distance between holes (pitch) should be at least 1.5 times the sheet thickness.
