What are the specifications of stainless steel perforated plates
Source:www.cn-psp.cnAuthor:河北森驰公司 Last updated:2025-05-15 11:35:32 Browse:
1. Material Variety to Meet Different Needs
Common raw materials for stainless steel perforated plate include grades 201, 304, 316, 316L, 409, and 430, with the option to select special alloys upon request. Each grade offers distinct corrosion resistance, high‑temperature performance, and mechanical properties. Customers can choose the ideal stainless steel perforated plate material based on application scenarios such as decorative curtain walls, filtration, and safety protection.
2. Standard Dimensions and Custom Sizes
Sheet Sizes
Standard panels: 1.0 m × 2.0 m, 1.2 m × 2.4 m;
Coil stock: 1.0 m × 20 m, 1.2 m × 20 m.
Flexible Customization
For special projects, any length and width can be produced. We also accommodate specified hole patterns and locations to meet bespoke design requirements for your stainless steel perforated plate.
stainless steel perforated panels
3. Thickness Range and Minimum Hole Diameter Guidelines
Available Thicknesses
From 0.1 mm up to 20 mm can be processed. Thicker plates provide greater strength and load capacity.
Minimum Hole Diameter Rule
Follow the principle that the minimum hole diameter should not be smaller than the plate thickness. For example, a 3 mm thickness requires a hole diameter of at least 3 mm to ensure proper perforation.

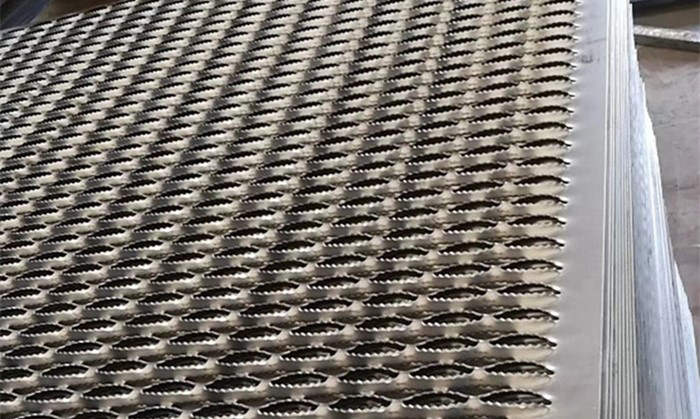

stainless steel perforated panels
4. Diverse Hole Shapes for Multiple Functions
Our stainless steel perforated plate can be produced with a wide array of hole shapes, including but not limited to:
Standard Geometric Holes: round, square, elongated round, oval, triangular, hexagonal;
Decorative & Specialty Shapes: pentagram, figure‑8, diamond, fish scale, cross, plum blossom, human silhouette;
Reinforced Shapes: dimpled round, slit, bridge‑shaped.
Combining multiple hole types delivers both aesthetic appeal and functional performance, ideal for applications in façade decoration, acoustic absorption, ventilation filtration, and protective barriers.

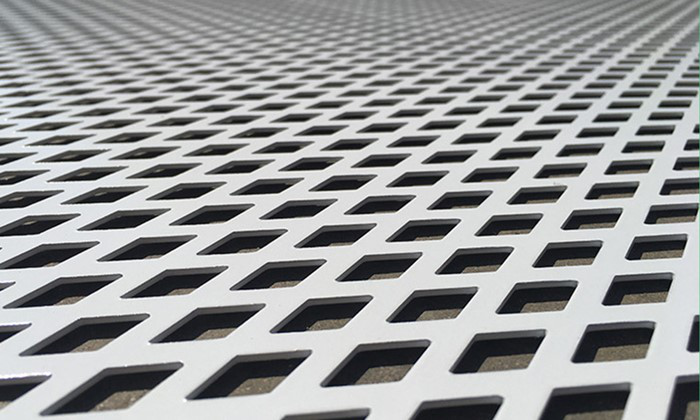

stainless steel perforated panels
5. Free Selection of Hole Diameter and Pitch
Hole Diameter Range: 0.2 mm to 300 mm, covering virtually all standard specifications;
Hole Pitch (Center‑to‑Center Spacing): Adjustable per design requirements. Ensure the edge‑to‑edge distance between holes is at least 1.5× the plate thickness to maintain plate integrity.
6. Professional Customization and After‑Sales Service
Equipped with CNC perforation lines and extensive customization experience, we provide one‑on‑one technical support and sample fabrication for every stainless steel perforated plate project. Whether bulk orders or small runs, we guarantee strict quality control, timely delivery, and comprehensive after‑sales service. Contact us via phone or email to design the perfect stainless steel perforated plate solution for your needs.
