We focus on the processing and customization of metal perforated plate, if you need to process customized or wholesale any metal perforated plate products, you can send us an email for consultation.
Product overview
Iron plate square hole perforated sheet production video
Product Overview

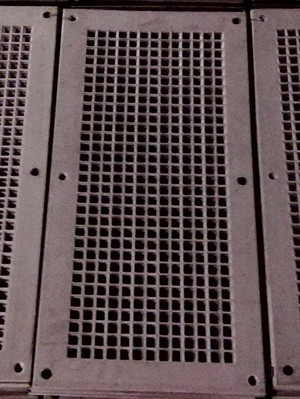

Our Iron Plate Square Hole Perforated Sheet is crafted from high-quality iron plates using precision CNC punching technology with custom molds. This ensures a smooth surface, uniform hole spacing, excellent ventilation, and structural integrity. It is widely used in machine guards, display stands, tile racks, and various industrial and decorative applications.
Product Specifications
We offer full customization for Iron Plate Square Hole Perforated Sheets with the following parameter ranges:
Material Options
Cold Rolled Steel: Smooth surface, high dimensional accuracy
Hot Rolled Steel: Superior strength, ideal for load-bearing applications
Galvanized Steel: Corrosion-resistant, suitable for outdoor use
Manganese Steel: Exceptional wear resistance, perfect for heavy-duty industrial use
Thickness Range
Custom production from 0.1mm to 20mm, with common thicknesses including:
Light-duty (0.5mm-1.2mm): Decorative purposes
Standard (1.5mm-3.0mm): Industrial protection
Heavy-duty (4.0mm+): Special load-bearing requirements
Standard Sizes
Common sheet sizes:
1000mm × 2000mm
1250mm × 2500mm
1500mm × 3000mm
Custom sizes available upon request.
Hole Patterns
Standard Square Holes: Equal-length square openings
Rectangular Holes: Customizable length-to-width ratio
Hole Size & Spacing
Hole Diameter: 1mm to 300mm (non-standard sizes available)
Spacing: Adjustable based on ventilation, light transmission, or structural needs
Manufacturing & Quality Control
We utilize CNC punching machines with custom molds to ensure:
Hole positioning accuracy ≤ 0.1mm
Surface flatness deviation < 1mm/m²
Batch sampling inspection to meet industry standards
Applications
Architectural & Decorative Use
Showroom display back panels
Building façade ventilation layers
Interior partition decorative panels
Industrial Protection
Machine safety guards
Factory ventilation filters
Automated equipment screening panels
Commercial & Retail Use
Supermarket locker doors
Exhibition display stands
Furniture & decorative accessories
Customization Process
1.Requirement Confirmation: Provide drawings or technical specs
2.Design Proposal: Feasibility feedback within 3 business days
3.Sample Production: Small-batch trial orders (7-10 business days)
4.Mass Production: Standard orders delivered in 15-20 days
Global Supply
We serve clients worldwide, including:
Asia: Japan, South Korea, Southeast Asia
Europe: Germany, France, UK, EU countries
Americas: USA, Canada, Brazil
Middle East: UAE, Saudi Arabia
Trade Terms: EXW, FOB, CIF available
Pricing Factors
Final pricing depends on:
Material type & thickness
Hole size & density
Special surface treatments (painting, coating, etc.)
Order quantity & packaging requirements
For a precise quote, please provide:
Technical drawings or detailed specifications
Required quantity & delivery timeline
Special shipping/packaging needs
Contact Us
Email: 342096438@qq.com
We respond within 24 hours with expert support on:
