Product Overview

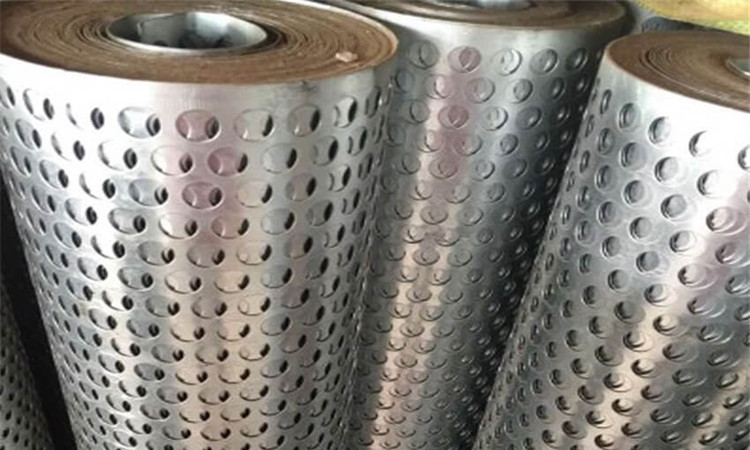

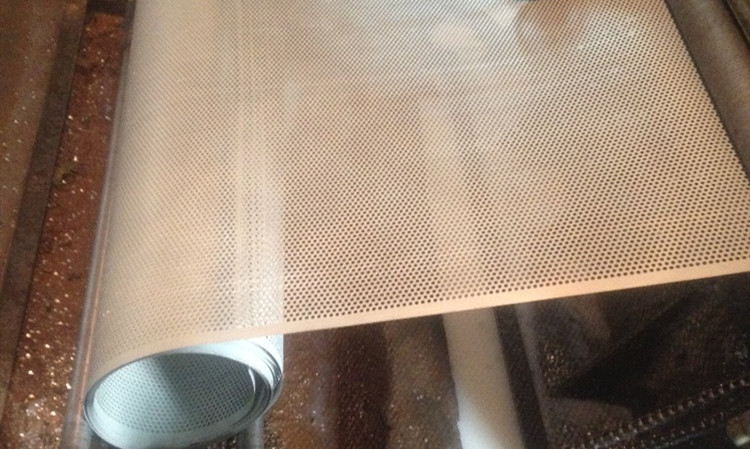

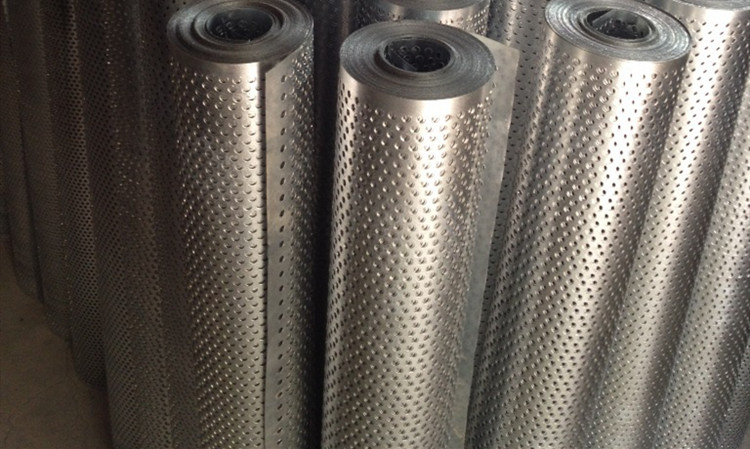

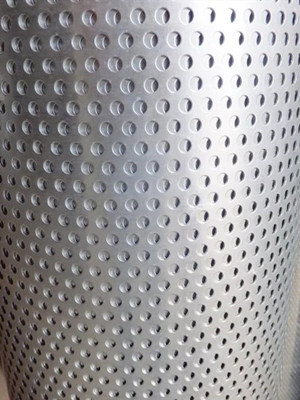

Roll Plate Stainless Steel Perforated Sheet is a precision-engineered mesh metal product, crafted by CNC punching high-quality stainless steel coils with custom molds. As a leading Chinese manufacturer, we supply both standard and tailor-made solutions to global markets.
Key Features
Uniform Perforation: CNC-controlled punching ensures consistent hole spacing.
Material Options: Standard 201 & 304 stainless steel; 316 and specialty alloys available upon request.
Thickness Range: Stock sizes from 0.3mm to 1.0mm; custom thickness negotiable.
Standard Dimensions: 1m (width) × 20m (length)/roll; non-standard sizes supported.
Hole Varieties: Standard round holes (3mm–10mm); custom shapes (square, hexagonal, etc.) possible.
Technical Specifications
Thickness
In-stock: 0.3mm, 0.4mm, 0.5mm, 0.6mm, 0.8mm, 1.0mm. Other thicknesses can be customized.
Materials
201 Stainless Steel: Cost-effective for general use.
304 Stainless Steel: Superior corrosion resistance.
316/Special Alloys: For extreme environments (e.g., marine, chemical).
Hole Sizes & Patterns
Standard: Round holes (3mm, 4mm, 5mm, 6mm, 8mm, 10mm).
Custom: Square, hexagonal, staggered, or artistic patterns.
Global Applications
1.Electronics: Speaker grilles, instrument shields.
2.Environmental: Noise reduction panels, filtration systems.
3.Food/Pharma: Sorting screens, hygienic equipment.
4.Architecture: Decorative façades, ventilation panels.
5.Industrial: Machine guards, safety barriers.
6.Agriculture: Grain drying vents, seed separators.
Customization Services
We specialize in flexible production to match your project needs:
Non-standard sizes (width/length adjustments).
Unique hole designs (shape, spacing, layout).
Low MOQ for prototypes; bulk order discounts.
Quality Control
Precision CNC punching for accuracy (±0.1mm tolerance).
Flatness testing to prevent warping.
Random sampling for hole diameter verification.
Surface finishing options (mill, brushed, polished).
Pricing & Ordering
Quotes depend on:
Material type (201/304/316)
Sheet thickness & dimensions
Hole size/pattern complexity
Order volume (wholesale discounts)
Request a Quote: Email us with:
Desired material/thickness.
Hole specifications.
Surface treatment (if needed).
Target quantity.
Response within 24 hours.
Packaging & Shipping
Standard: Moisture-proof paper + wooden pallets.
Custom packaging for fragile/large orders.
Global logistics (sea/air freight; EXW/FOB terms).
Full export documentation provided.
Contact Us
Email: 342096438@qq.com
Our team offers:
Product selection guidance.
Technical drawings support.
Custom production consulting.
Door-to-door shipping solutions.
