Safety grating

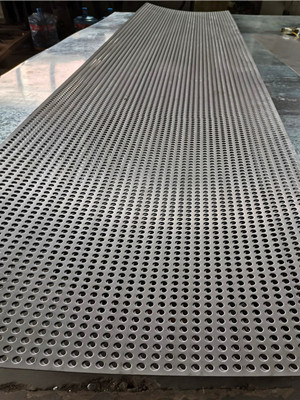

Carbon Steel Punched Metal Plate

Source:www.cn-psp.cnAuthor:河北森驰公司 Last updated:2025-07-21 16:44 Browse:
Email:342096438@qq.com
We focus on the processing and customization of metal perforated plate, if you need to process customized or wholesale any metal perforated plate products, you can send us an email for consultation.

Product overview



Carbon Steel Punched Metal Plates | Custom Manufacturing & Global Supply Solutions

As a China-based specialist in metal punching with decades of expertise, we deliver full-spec carbon steel punched plates tailored to global requirements. Our digitally-controlled production ensures every product meets industry-specific applications without secondary processing – ready for immediate project integration.


Core Advantages


Ready-to-Install Design
Client-driven manufacturing from material selection to hole pattern design guarantees project-ready delivery, slashing your time and machining costs.

Premium Material Selection
We use prime low-carbon steel (cold/hot-rolled steel, galvanized steel, manganese steel) shaped by CNC punching machines. Key product specs:

Hole diameter tolerance: ±0.1mm

Surface hardness: HRB 80-100
·
40%+ longer corrosion resistance (galvanized options)

Full Customization Capabilities
Non-standard production supported with parameters including:

Dimensions: Width ≤1500mm, Length ≤4000mm (irregular shapes negotiable)

Thickness Range: Precision processing from 0.1mm to 20mm

Hole Specifications: 1-300mm customizable diameters

27 Standard Hole Patterns: Round, oval, square, triangular, star, hexagon, figure-8, cross, herringbone, diamond, fish scale, bridge-type, etc.

Surface Finishes: Painting, fluorocarbon coating, electrostatic powder coating (anodizing for aluminum / electrolytic polishing for stainless steel)



Industry Applications

Our carbon steel punched metal plates serve critical functions across sectors:

Industrial Screening: Crusher screens, vibrating sieves, filtration systems

Architecture & Decoration: Curtain wall backing, ceiling panels, ventilation grilles

Machine Guarding: Equipment enclosures, safety fencing, operating platforms

Specialty Components: Acoustic panels, radiator cores, conveyor sideboards

Creative Design: Art installations, exhibition props, furniture frameworks



Technical Assurance

Precision Manufacturing

Die positioning accuracy: ±0.01mm

Punching speed: 60-300 strokes/minute (material-dependent)

Daily capacity: 3000m² of standard plates


Quality Control
Production adheres to international standards including ASTM A569/A653, EN 10130, and JIS G3141. Triple-check protocol:

Raw material spectrometry testing

Real-time dimensional monitoring

Batch tensile strength sampling (≥270MPa)



Global Client Support

Custom Workflow
Needs Analysis → Quote & Solution → Tooling Development → Sample Approval → Bulk Delivery
Logistics

Asia: 7-15 working days

Europe/Americas: 15-25 working days

EXW/FOB/CIF terms available


Request Your Solution

Email specific requirements to: 342096438@qq.com

Recommended details: Material type, thickness, dimensions, hole pattern, hole size, pitch distance, surface finish, application
