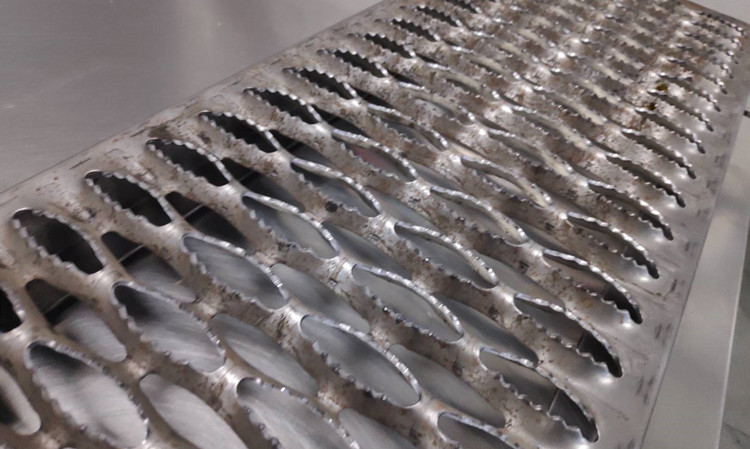

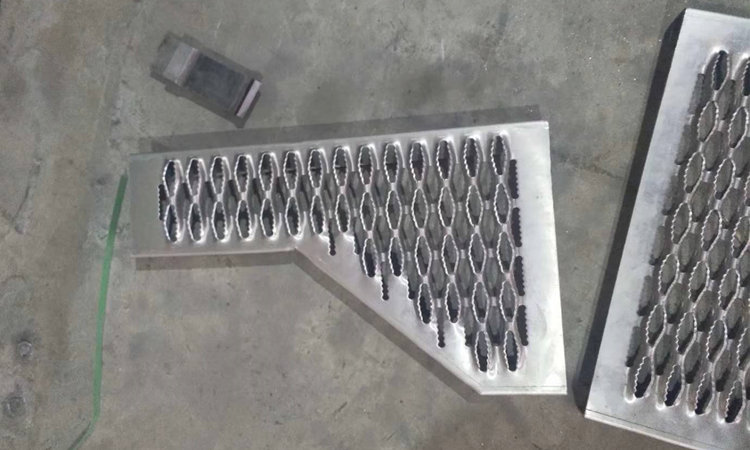

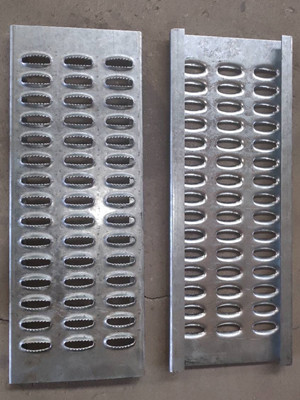

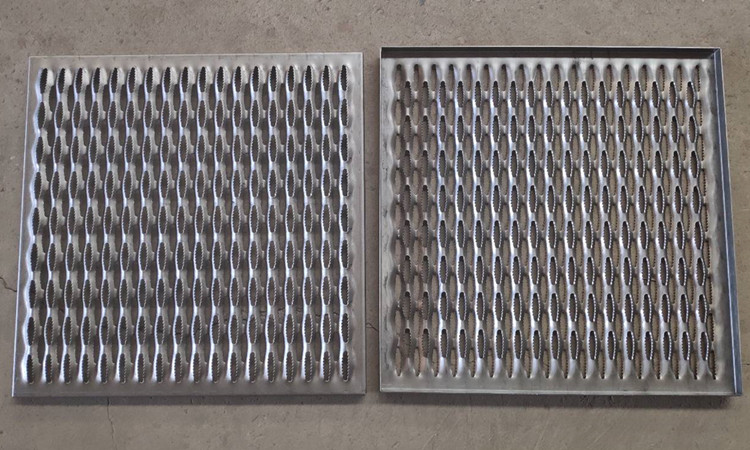

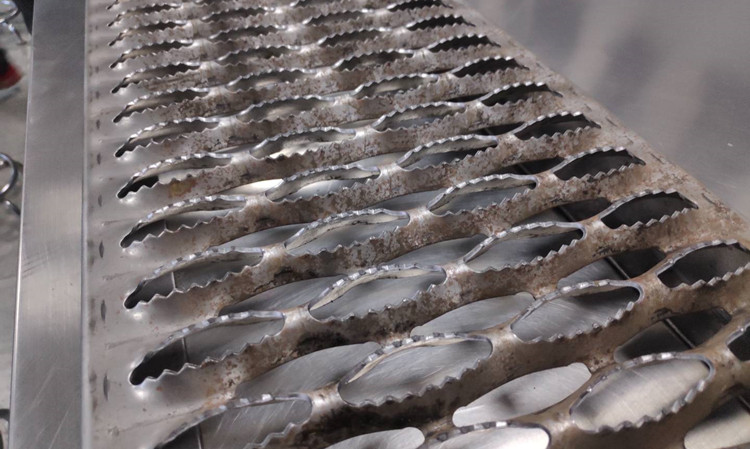

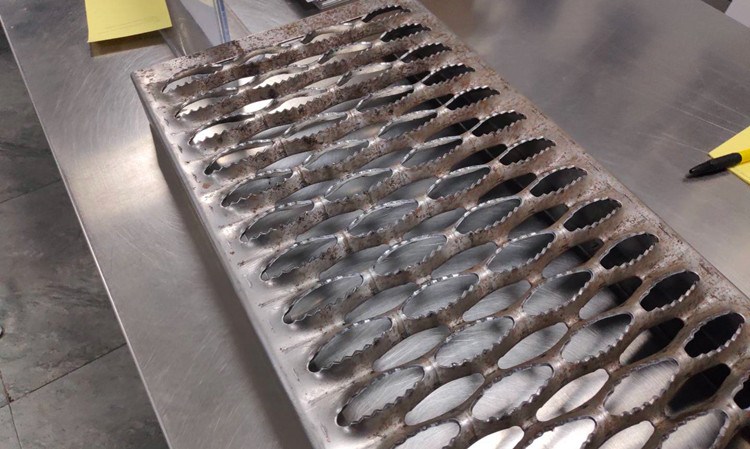

Grip Strut Safety Grating

Source:www.cn-psp.cnAuthor:河北森驰公司 Last updated:2025-07-21 11:22 Browse:

Email:342096438@qq.com
We focus on the processing and customization of metal perforated plate, if you need to process customized or wholesale any metal perforated plate products, you can send us an email for consultation.

Product overview

Grip Strut Safety Grating Production video display

Who We Are

As a leading Chinese manufacturer specializing in Grip Strut Safety Grating, we combine precision engineering with flexible production to deliver anti-slip solutions across industries. From factories to offshore platforms, our products meet rigorous safety standards while adapting to unique project requirements.

What We Offer

1. Ready-to-Ship Products
Our stock Grip Strut Safety Grating covers all standard industrial needs:
· Dimensions: 100-1500mm width / 120-6000mm length
· Thickness options: 1.0mm to 4.0mm in 0.5mm increments
· Pattern varieties: Classic crocodile mouth holes, round holes, or square holes

2. Tailored Solutions
Customization services include:
· Special sizing: Non-standard widths/lengths with 0.1mm precision
· Enhanced grip: Adjustable croc-mouth angles (30°-60°) for wet/oily conditions
· Structural upgrades: Choose between single-flange (standard load) and double-flange (heavy-duty) designs

Material Expertise

Carbon Steel Grating
Cold-rolled, hot-rolled, and galvanized options for factory floors, warehouse ramps, and industrial stair treads. Provides optimal cost-performance for dry environments.

Aluminum Grating
35% lighter than steel with natural corrosion resistance. Ideal for building facades, marine walkways, and food processing plants needing frequent washdowns.

Stainless Steel Grating
316/304 grades for extreme conditions. Used in chemical plants, offshore oil rigs, and coastal infrastructure where saltwater corrosion is a concern.

Surface Treatments

· Steel protection: Choose between hot-dip galvanizing (80μm zinc coating) or electrostatic spraying in 200+ RAL colors
· Aluminum finishing: Durable anodizing (15-25μm) or weatherproof fluorocarbon coatings
· Stainless refinement: Mirror-like electro-polishing reduces surface roughness to Ra≤0.4μm

Proven Performance

Anti-Slip Assurance
The unique crocodile-mouth pattern achieves 0.65-0.85 dynamic friction coefficient (DIN51130 certified), maintaining traction even in icy conditions.

Structural Reliability
· 4mm thick plates support over 5 tons/m² load (EN ISO 14122 tested)
· Stable performance across extreme temperatures (-40℃ to +120℃)
· Passes 2000-hour salt spray tests (ASTM B117) for coastal/marine use

Global Applications

Industrial Settings
• Automotive assembly line platforms
• Oil refinery maintenance walkways
• Power plant turbine access grids

Urban Infrastructure
• Bridge sidewalk anti-slip strips
• Subway station edge protection
• Port cargo area flooring

Specialized Environments
• Pharmaceutical cleanroom flooring
• Wastewater treatment plant walkways
• Offshore wind turbine access grids

Order Process

Step 1 – Share Requirements
Submit CAD files, site photos, or technical specs via email.

Step 2 – Get Technical Proposal
Receive material recommendations, process details, and lead times within 2 business days.

Step 3 – Approve Samples
Test free 30x30cm physical samples matching your exact specifications.

Step 4 – Bulk Production
15-25 day turnaround for full container loads (20GP/40HQ).

Step 5 – Global Delivery
Door-to-door shipping with real-time tracking across 76 countries.

Why Choose Us

Deep Industry Knowledge
12+ years refining 200+ hole pattern combinations for optimal grip and drainage.
Production Capacity
500-ton daily output using CNC punching and laser cutting technology.
Responsive Service
72-hour emergency response for urgent projects with dedicated engineering support.
