Perforated Sheet

Round Hole Iron Plate Perforated Sheet

Source:www.cn-psp.cnAuthor:河北森驰公司 Last updated:2025-07-05 14:50 Browse:
Email:342096438@qq.com
We focus on the processing and customization of metal perforated plate, if you need to process customized or wholesale any metal perforated plate products, you can send us an email for consultation.

Product overview

Round hole iron plate perforated sheet production video


Product Overview
Round Hole Iron Plate Perforated Sheet is a high-quality metal mesh product manufactured through CNC punching technology using premium iron plates as base material. Our products feature smooth surfaces, uniform hole spacing, structural stability, and excellent workability, making them ideal for diverse applications in construction projects, mechanical equipment, and decorative installations.

Core Advantages
Precision Manufacturing:
Utilizing advanced CNC punching machines with hole diameter accuracy up to ±0.1mm
Material Variety:
Multiple base material options including cold-rolled steel, hot-rolled steel, galvanized steel, and manganese steel plates
Customization Flexibility:
Supports non-standard sizes, special hole patterns, and unique arrangement designs
Cost Efficiency:
Direct factory pricing combined with mass production capabilities ensures outstanding value

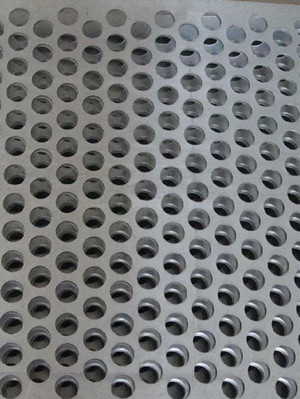

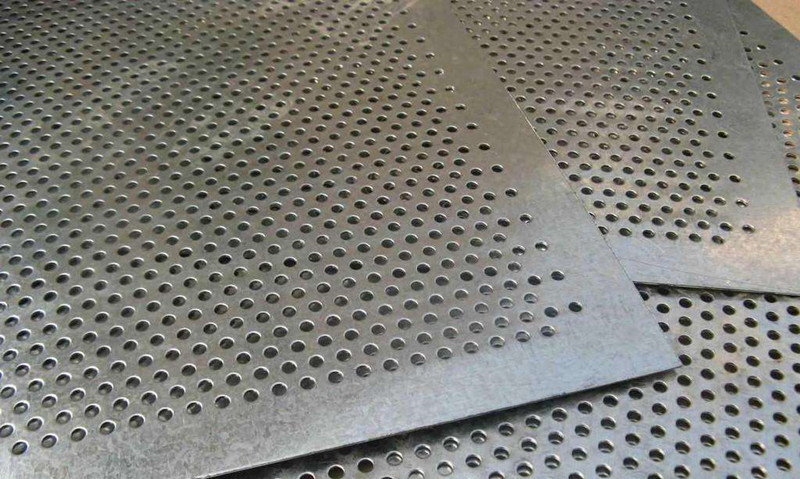

Round hole iron plate perforated sheet product display

Technical Specifications
Material Options
Standard Materials: Q195/Q235 cold-rolled steel plates, SPCC galvanized steel
Specialty Materials: 65Mn manganese steel plates (ideal for wear-resistant applications)
Anti-Corrosion Treatments: Electro-galvanizing, hot-dip galvanizing, and other surface treatment solutions

Size Range
Thickness: 0.1mm-20mm (common thickness 1.0-6.0mm)
Standard Panel Sizes: 1000×2000mm / 1250×2500mm / 1500×3000mm
Maximum Custom Size: Width ≤1500mm, Length ≤4000mm
Hole Diameter Range: 0.2mm-300mm (covering micro holes to large openings)

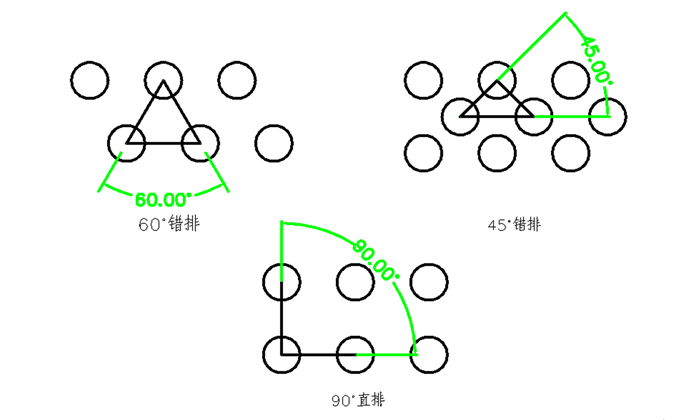

Hole Pattern Arrangements
We offer various industrial-grade layout options:
60° Staggered Pattern (optimal strength-to-weight ratio)
45° Diagonal Pattern (enhanced material flow efficiency)
90° Straight Pattern (standard balanced arrangement)
Custom CAD Designs for special hole configurations

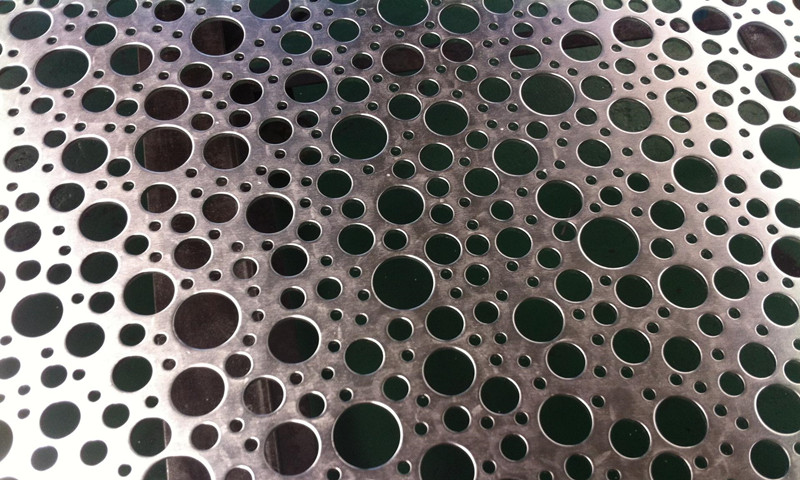

Round hole iron plate perforated sheet product display

Typical Applications
Architectural & Decorative Uses
Curtain wall ventilation layers / Sound barrier acoustic panels
Shopping center escalator anti-slip treads
Artistic installation metal substrates

Industrial Equipment Applications
Vibrating screen meshes (mining/grain processing)
Machinery protective covers
Dust collector filtration components

Daily Facility Implementations
Kitchen equipment grease filters
Outdoor furniture panels
Eco-friendly trash bin ventilation layers

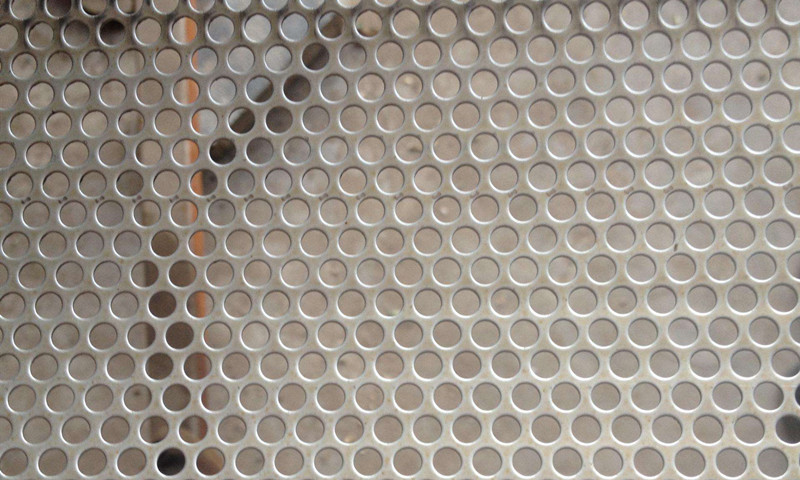

Round hole iron plate perforated sheet product display

Quality Control System
Our production process adheres to industry-standard technical specifications:
Raw Material Inspection: Incoming steel plate hardness testing (HRB≤75)
Process Control: Hole diameter sampling every 50 pieces
Final Product Inspection: Panel flatness ≤1.5mm/m²

Custom Service Process
1.Requirement Confirmation: Submit drawings/samples/technical parameters
2.Solution Quotation: Receive feasibility analysis and budget within 24 hours
3.Sample Production: Small-batch trial manufacturing available
4.Mass Production: Standard delivery within 15-25 days (varies by order quantity)

Global Supply Chain Support
Export Packaging: Standardized moisture-proof paper + wooden pallet packaging
Logistics Solutions: Multiple trade terms including EXW/FOB available
Documentation Support: Material certificates and factory inspection reports provided

Round hole iron plate perforated sheet product display

Frequently Asked Questions
Q: What's the minimum order quantity?
A: Standard products require 1-ton minimum order; custom products negotiable based on mold costs.

Q: Do you offer anti-corrosion surface treatments?
A: Yes, options include electro-galvanizing (8-12μm) or powder coating (60-80μm).

Q: How do you ensure consistent hole spacing?
A: Our German-imported CNC punching machines maintain positioning accuracy of ±0.05mm.

Request Accurate Quotation
Please email the following information to 342096438@qq.com:
Material requirements
Thickness and panel dimensions
Hole pattern diagram/arrangement parameters
Surface treatment needs
We will respond with detailed quotation within 8 business hours.
