Comprehensive Guide to Perforated Aluminum Sheet: Types, Sizes, and Applications
Source:www.cn-psp.cnAuthor:河北森驰公司 Last updated:2025-05-21 16:36:32 Browse:
Perforated aluminum sheet is a versatile metal material widely used in architectural decoration, industrial manufacturing, and ventilation systems. It is made from high-quality aluminum plates and processed through CNC punching with a variety of dies to create different hole patterns, catering to personalized design requirements.
Common Hole Types
Perforated aluminum sheet comes in a wide range of hole types, including round holes, oval holes, square holes, triangular holes, five-pointed star holes, hexagonal holes, fish scale holes, louver holes, drum holes, diamond holes, cross holes, plum blossom holes, and crocodile mouth holes. These diverse patterns serve both functional and aesthetic purposes.
Perforated aluminum sheet
Hole Diameter Range
Hole diameters of perforated aluminum sheets can be customized based on application needs. Typically, round hole diameters range from 0.2 mm to 100 mm. It's important to ensure that the hole diameter is not smaller than the thickness of the sheet to maintain structural integrity and process efficiency.
Hole Arrangement

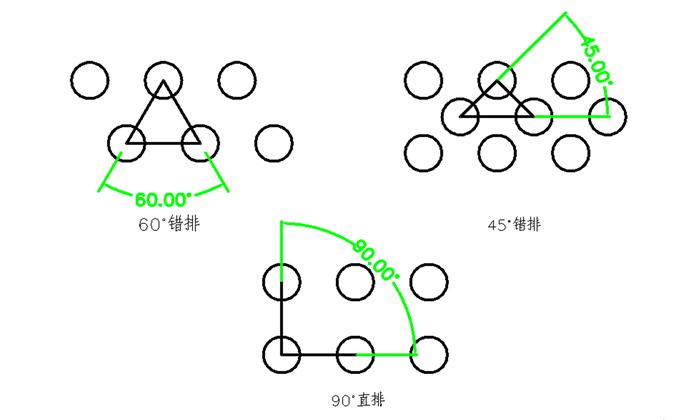

The arrangement of holes significantly affects both the appearance and performance of the perforated aluminum sheet. Common patterns include 60° staggered, 45° staggered, and 90° straight row configurations. Custom irregular layouts are also available for high-design demands. Clients can select suitable arrangements depending on the desired open area and usage scenarios.

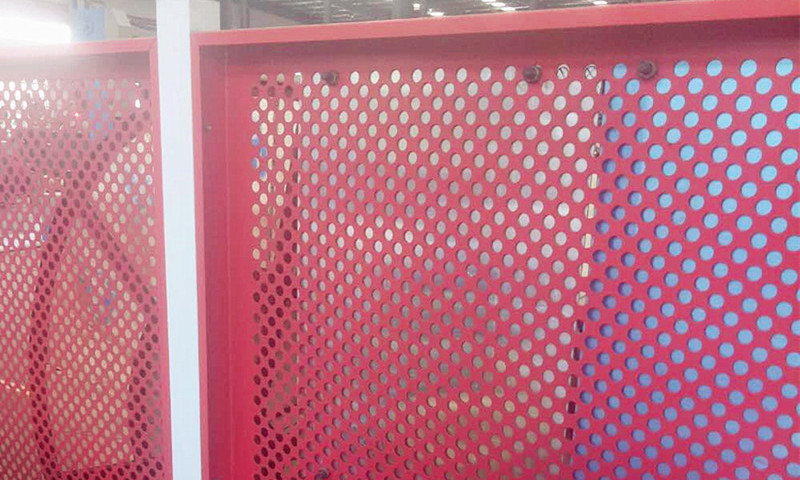

Perforated aluminum sheet
Standard Sheet Sizes
Standard dimensions for perforated aluminum sheets include 1m × 2m and 1.25m × 2.5m. Custom sizes are available upon request. Typically, the maximum width is 1.5 meters and the maximum length is 4 meters. Perforated aluminum sheets can also be further processed by laser cutting to achieve various complex shapes for special design requirements.

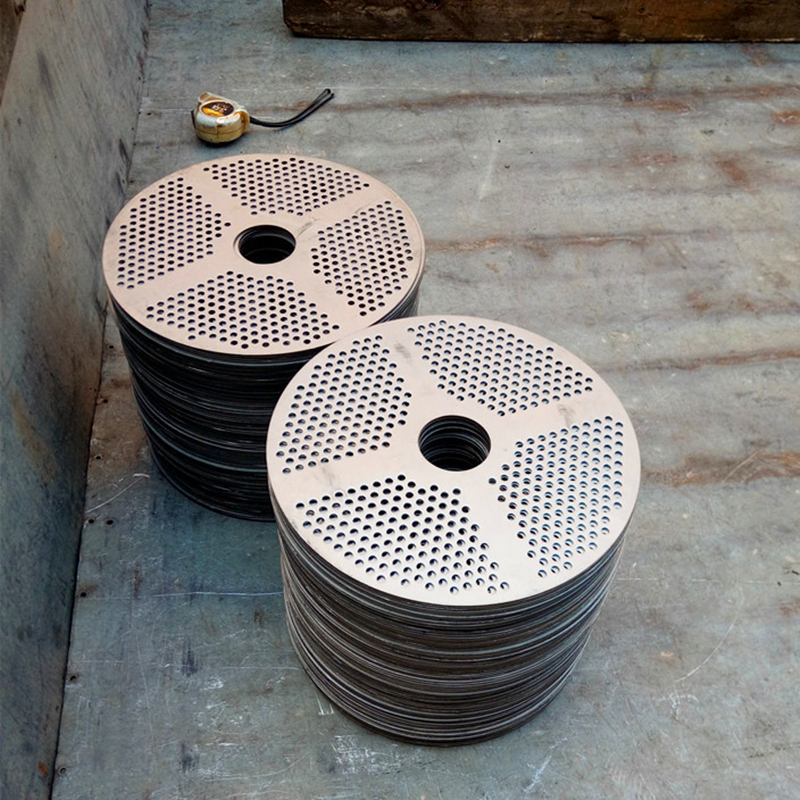

Perforated aluminum sheet
Thickness Options
The thickness range of perforated aluminum sheet spans from 0.5 mm to 30 mm. Commonly used thicknesses include 0.5 mm, 0.6 mm, 0.7 mm, 0.8 mm, 0.9 mm, 1.0 mm, 1.2 mm, 1.5 mm, 1.8 mm, 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm, 4.0 mm, and 5.0 mm. For thicker specifications, sheets can be sourced directly from aluminum plate manufacturers to meet specific project demands.
Perforated aluminum sheet
