Comprehensive Analysis of Stainless Steel Punching Net Price per Square Meter
Source:www.cn-psp.cnAuthor:河北森驰公司 Last updated:2025-05-12 09:51:21 Browse:
When choosing a stainless steel punching net, price is often the top concern. In reality, the cost per square meter varies according to multiple factors. Understanding these key influences will help you make an informed decision and secure a product that meets your needs at the best value.
I. Introduction to Stainless Steel Punching Net
A stainless steel punching net is produced by using a punch press to create various hole patterns in stainless steel sheets, forming a metal mesh panel. It combines both decorative appeal and practical function, and is widely used in building facades, interior partitions, HVAC guards, filtration and sieving applications. Depending on the application, you can select different hole shapes, diameters, and material thickness to satisfy requirements for aesthetics, light transmission, ventilation, and protection.

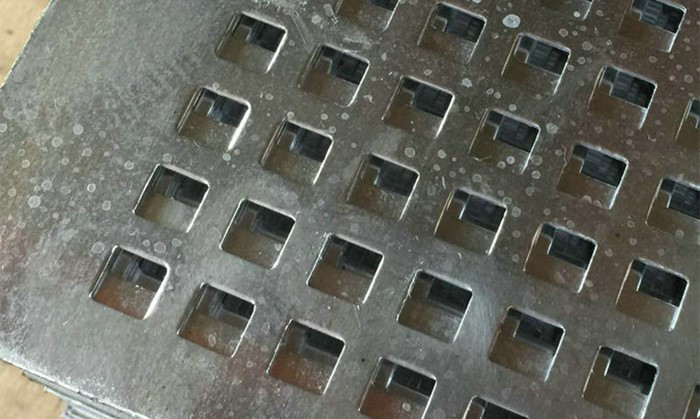

stainless steel punching net
II. Main Factors Affecting Price
1. Variety of Hole Patterns
Punching nets offer a rich variety of hole patterns, including round, square, elongated oval, elliptical, triangular, star, hexagonal, grid, petal, and fish-scale shapes. The complexity of the pattern directly impacts manufacturing cost:
Round & Square Holes: Simple to produce with fast setup, resulting in lower cost.
Complex Decorative Patterns (e.g., stars, petals, fish scales): Require precision positioning and often multiple or custom dies, increasing both time and tooling expense.
Thus, the more intricate the hole pattern, the higher the price per square meter.
2. Hole Diameter and Center-to-Center Distance
Hole Diameter: Ranges from 0.2 mm up to 300 mm. Larger diameters take longer per punch and generate more scrap.
Center-to-Center Distance: Smaller distances mean more holes per area, which lowers production speed; larger distances improve throughput but reduce material utilization.
Under the same pattern, the combination of diameter and pitch determines the hole count per square meter, directly influencing processing cost and final price.
3. Material Grade
Common stainless steel grades for punching nets include 201, 304, 316, 409, and 430:
201 & 430: Budget-friendly options for decorative or light-duty applications.
304 & 316: Superior corrosion resistance for outdoor, chemical, or marine environments, commanding a premium price.
409: Offers high-temperature resistance with moderate corrosion protection, at a mid-range cost.
Higher‐grade alloys have higher raw-material prices and thus raise panel cost accordingly.
4. Sheet Thickness
Thickness options range from 0.1 mm up to 20 mm:
Thin Sheets (≤1 mm): Easier punching, lighter weight, lower cost.
Medium Thickness (1–5 mm): Versatile for most uses, mid-range pricing.
Thick Plates (>5 mm): Require heavy-duty presses with high tonnage, significantly raising processing difficulty and cost.
Choosing the right thickness depends on load requirements, decorative needs, and protective functions.
stainless steel punching net
III. Customization and Additional Costs
Beyond the core parameters, surface treatments (e.g., brushing, sandblasting, powder coating, electroplating), post-processing (deburring, cleaning), anti-rust packaging, and logistics all add extra fees. For large custom orders, you can often negotiate die fees and bulk discounts to reduce the per-square-meter price.
IV. How to Obtain an Accurate Quote
To get a precise price per square meter, please provide:
Hole Pattern & Count: Specify the desired shape and number of holes per area.
Diameter & Pitch: Define hole diameter and center-to-center distance.
Material Grade: Choose the stainless steel grade.
Thickness: Determine sheet thickness for your application.
Surface Finish: Indicate if brushing, coating, or other treatments are required.
Quantity & Lead Time: State the order volume and delivery schedule.
Send these details via email or phone to our sales team, and we will promptly furnish a tailored quote and technical proposal.
V. Conclusion
Thanks to its versatile hole patterns, robust mechanical properties, and enduring aesthetics, the stainless steel punching net has become a favorite in modern construction and design. Prices vary based on pattern complexity, hole size and spacing, material grade, thickness, and customization. We hope this analysis clarifies how costs are determined, helping you purchase with confidence and peace of mind.
For further inquiries, samples, or quotations, please feel free to contact us at any time!
